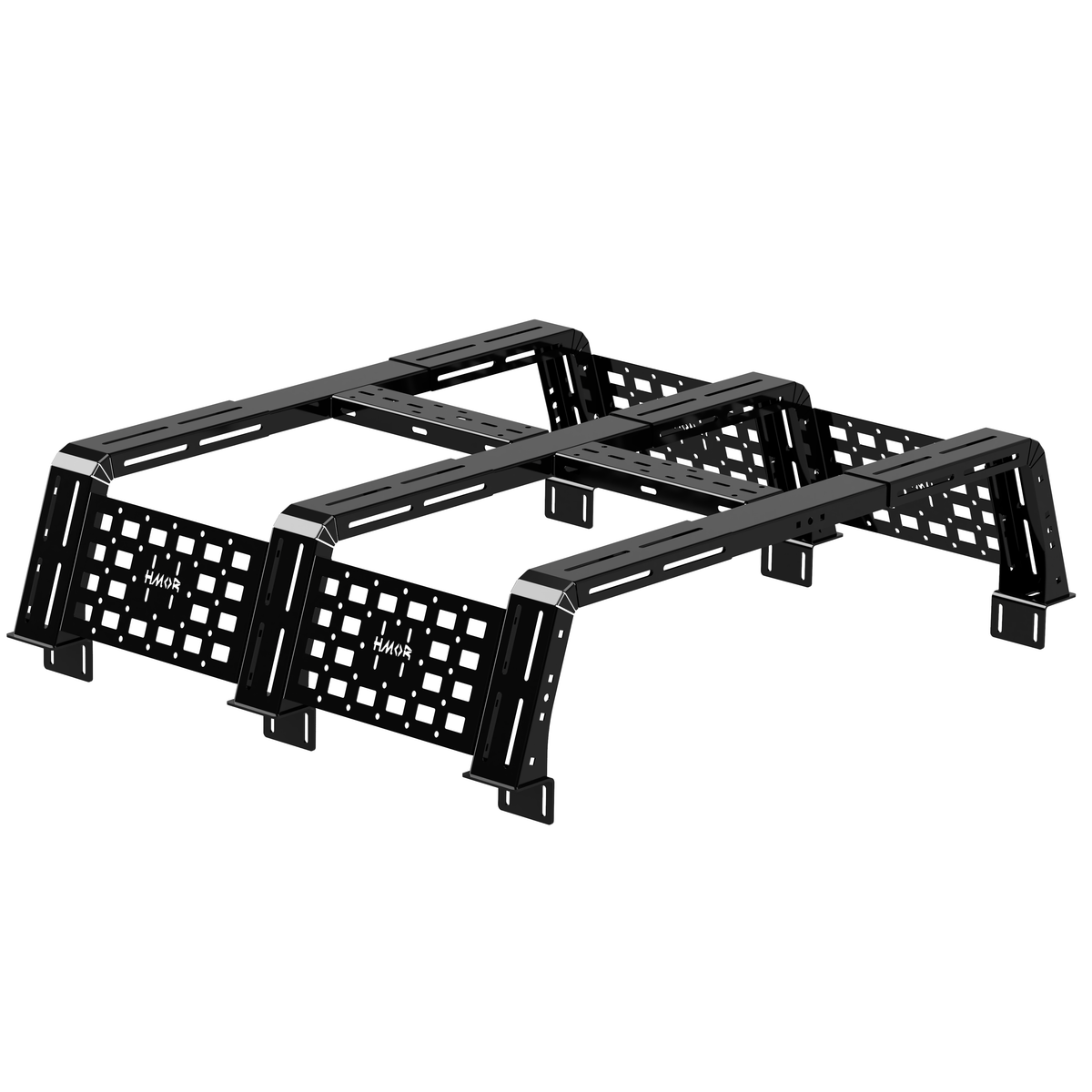

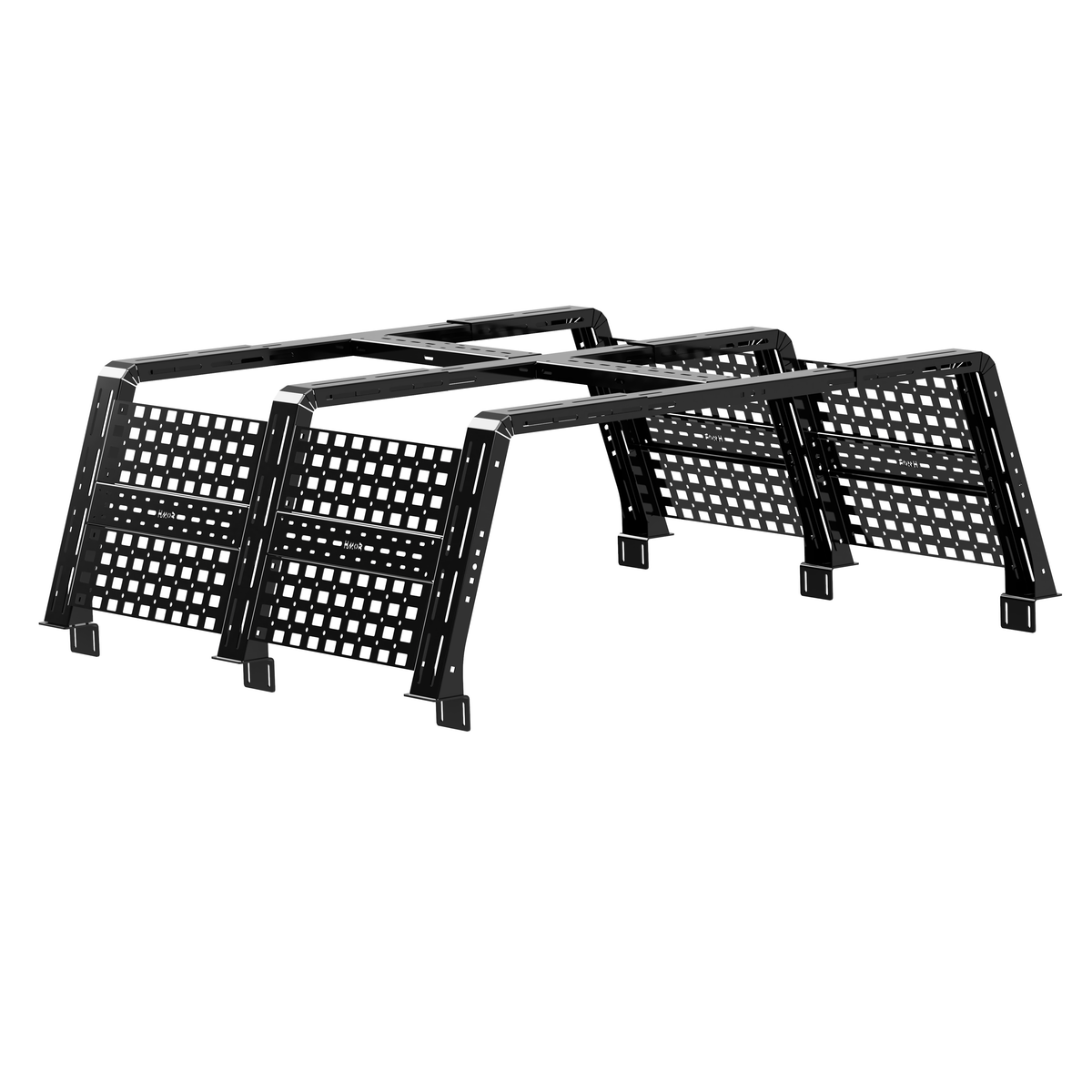

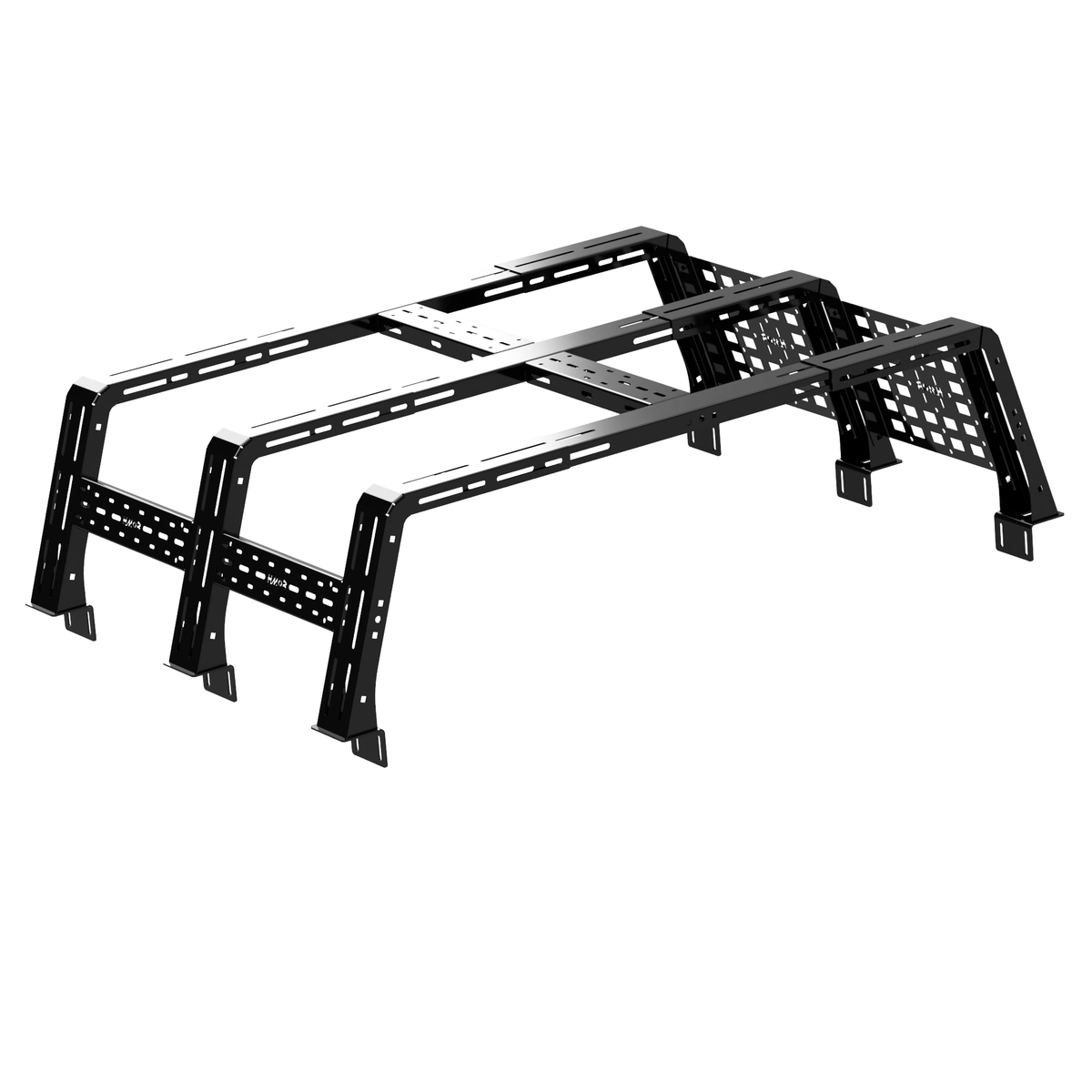

Universal Fit ROCK-IT Rack HMOR

HMOR Universal Fit ROCK-IT Rack brings the strength and modularity of the ROCK-IT system to custom applications beyond our vehicle-specific fitments. It is a strong option for trucks without a dedicated HMOR listing, trailers, custom beds, fabricated platforms, and other unique projects. Adjustable rack width, multiple height and rack-length configurations, slotted crossbars, runners, MOLLE panels, and flexible mounting options give builders a proven platform that can be adapted to a wide range of applications.

Designed and manufactured in the USA.

Built to Grow With Your Setup

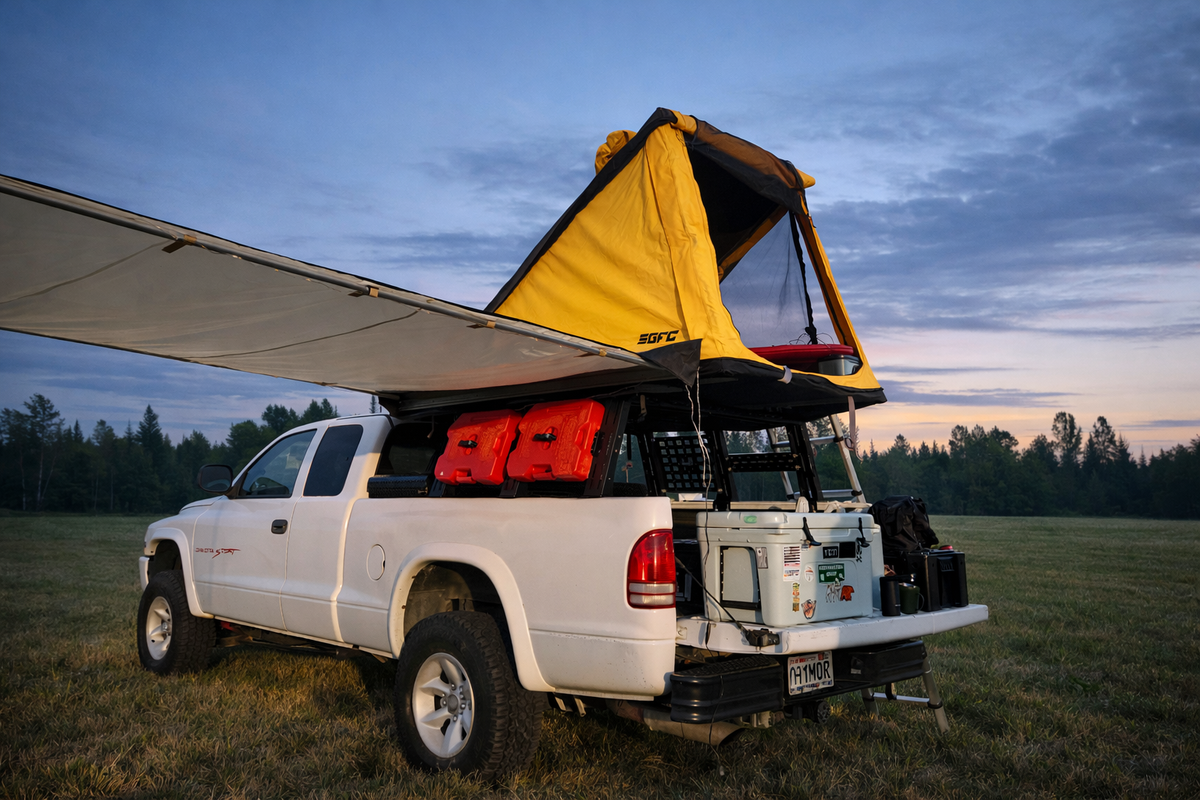

ROCK-IT is a modular platform. Slotted crossbars, runners, MOLLE panels, and compatible bolt-on accessories provide flexible attachment points for rooftop tents and other gear as your setup evolves. Compatible rooftop tents and mounting hardware can often bolt directly through the rack's top-surface slots without extra crossbar clamps or adapters.

Key Features

• 12ga formed-steel construction: Major structural components are formed from 12ga steel for a strong, rigid rack system.
• Continuously welded corner reinforcement: Reinforced pillar corners help redistribute load through a high-stress area of the rack and resist twisting and fatigue.
• Modular accessory system: Slotted crossbars, runners, MOLLE panels, integrated wiring pass-throughs, and compatible bolt-on accessories support changing cargo setups.
• Adjustable rack width: Rack width is set during assembly to suit the compatible application.
• Black powder coat included: The rack components are supplied with a black powder-coated finish.

Choose Your Configuration

Available rack heights: 12-inch, 17-inch, 23-inch. Rack lengths: 45-inch and 60-inch. Available mounting systems and fitment qualifications are described below.

Mounting and Fitment

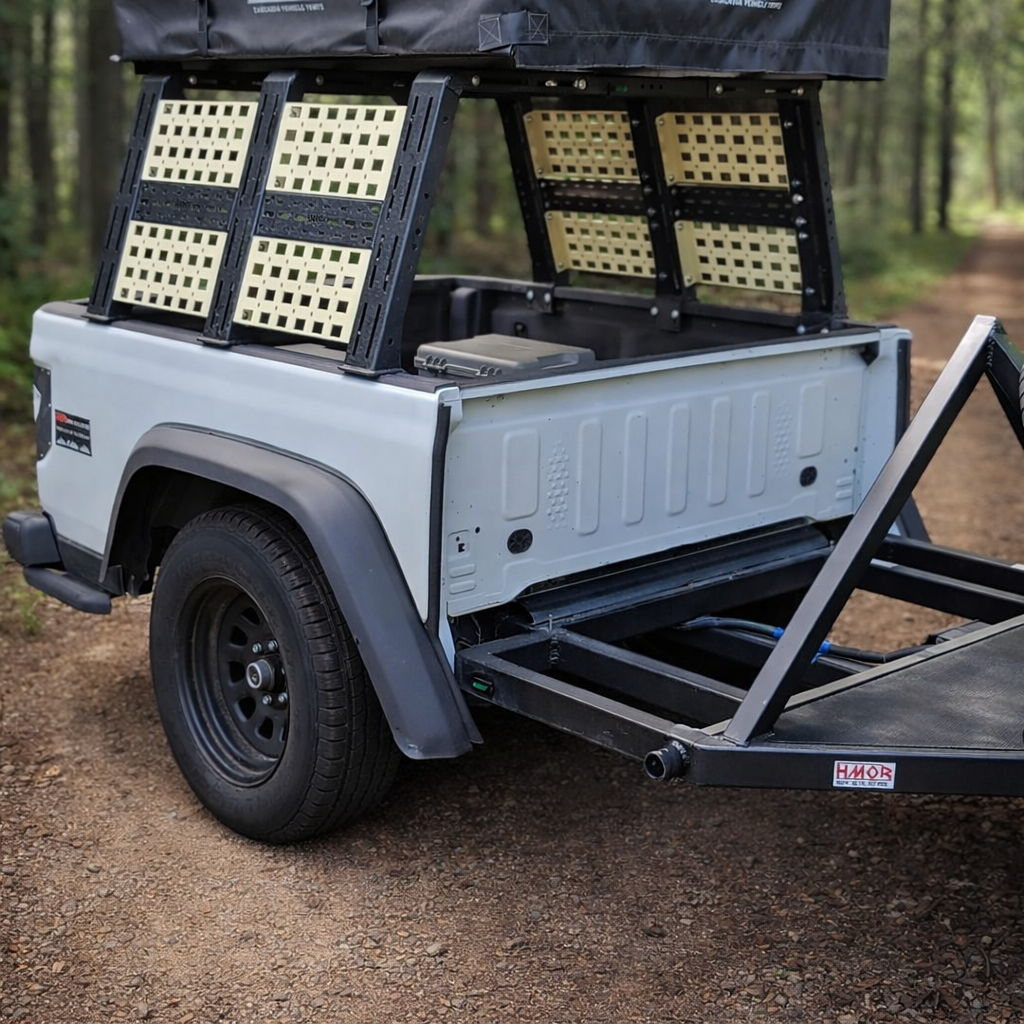

Designed for custom applications where the selected rack dimensions and mounting system are compatible with the vehicle, trailer, bed, or platform. Common uses include trucks without a dedicated HMOR fitment, trailers, custom beds, fabricated platforms, and specialty builds. Available rack lengths are 45 inches and 60 inches. Available mounting options include HMOR Non-Track mounting and Retrax XR / Roll-N-Lock XT mounting. The Retrax XR / Roll-N-Lock XT option uses flat mounting plates rather than formed L-style feet, making it especially useful for compatible T-slot cover rails and custom flat-surface installations where the plates can be through-bolted to a suitable structure. Rack width is adjusted during assembly. Measure the application and confirm mounting-surface strength, mounting-hole access, rack width, rack length, height, and required clearances before ordering.

Load Ratings and Real Use

Published load support is based on evenly distributed loads only. The ROCK-IT Rack supports up to 1,500 lbs static and smooth-motion dynamic load. Static means the vehicle is not moving. Dynamic means the vehicle is in smooth motion. Rough off-road impacts can exceed smooth-motion dynamic conditions. Do not exceed the OEM vehicle manufacturer's load capacity. HMOR's published rating is based on CAD-based assessment plus real-world testing and field validation.

What's Included

Selected ROCK-IT Rack configuration includes all rack components, MOLLE panels, rack-to-vehicle mounting hardware, and assembly hardware. Black powder coat is included.

Installation

HMOR Universal Fit ROCK-IT Rack assembles as a bolt-together modular rack and is intended to be adapted to the selected truck, trailer, bed, or custom application using the appropriate mounting system. The Retrax XR / Roll-N-Lock XT mounting option uses flat mounting plates, making it especially useful for custom applications where the rack can be through-bolted directly to a suitable flat surface. HMOR Non-Track mounting is also available for compatible pickup-bed applications. Rack width is adjusted during assembly before the crossbars are secured into position. Rack assembly hardware and the selected mounting hardware are included. Confirm mounting-surface construction, dimensions, rack length, rack height, and required clearances before installation.

Warranty

HMOR-manufactured products are backed by a limited lifetime warranty for the original purchaser against defects in materials and workmanship. Paint, powder coating, and other coatings are not covered. Damage from misuse, overloading, accidents, neglect, abuse, modification, transfer to another owner, or racing or competition use is excluded. Warranty eligibility is subject to HMOR's full warranty terms.
