FJ40 Leaf Spring Hangers

FJ40 Leaf Spring Hangers

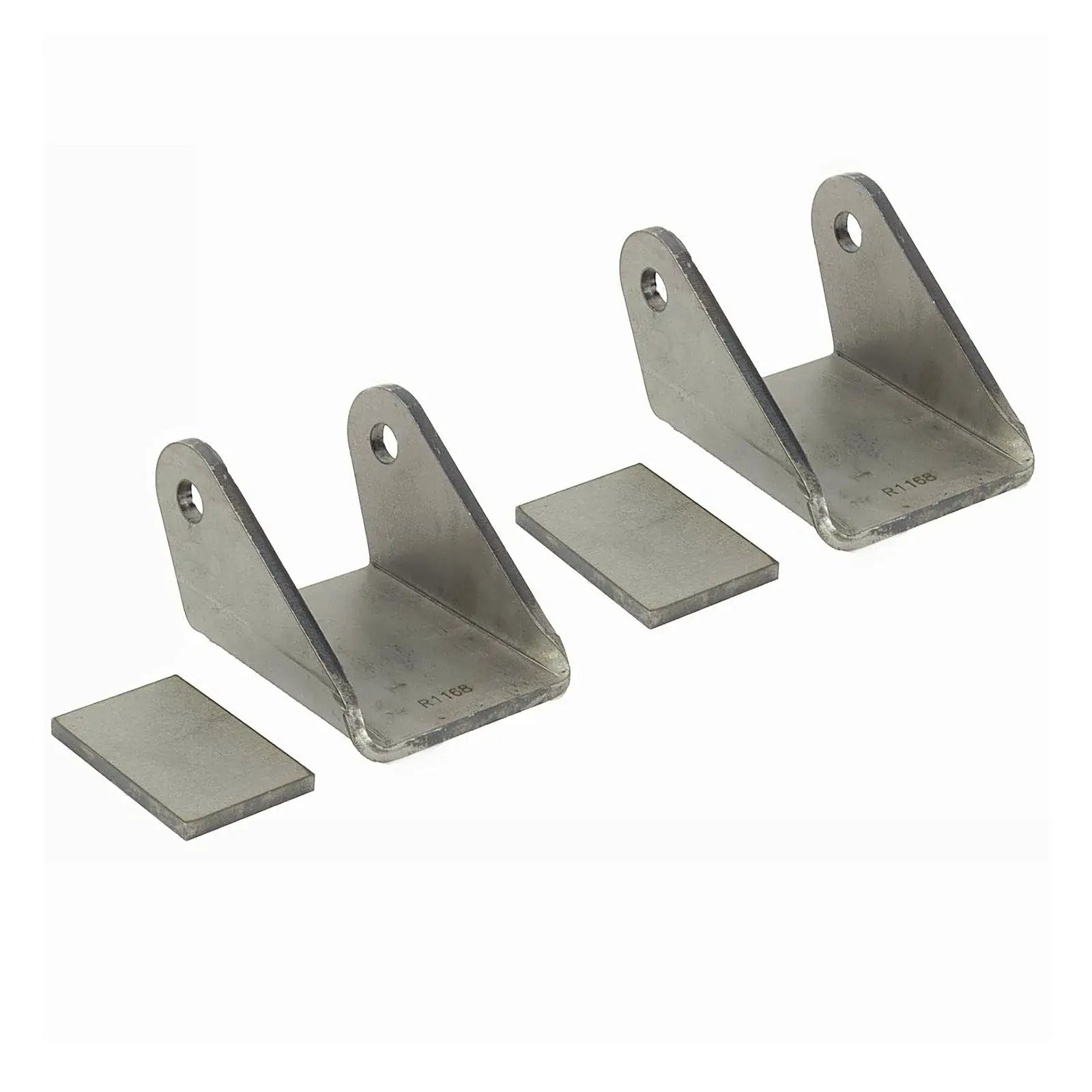

Hangers for 2.75" or 2.5" leaf springs with 3.0" bushing clearance

These hangers fit Toyota FJ40 applications using 2.75" or 2.5" leaf springs and large (GM-style) bushings. The inner width is 3.0" to clear the bushing sleeves, and each hanger includes a ramp reinforcement for added rigidity. Bolt holes are 9/16" to match common spring hardware and maintain a tight, repeatable pivot.

The spring pin centerline is aligned with the hanger’s leading edge, allowing you to extend the hanger past the frame to gain roughly 1"+ of wheelbase. Hangers can face forward or rearward, and the ramp can serve as a skid where clearance is tight. Verify spring width and bushing width before placement, and set shackle angle and driveshaft clearance prior to final welding or fastening.

Key Features

• Part Number: R1168
• Fits 2.75" or 2.5" leaf springs (GM-style large bushings)
• 3.0" inner width for bushing clearance
• 9/16" bolt hole
• Ramp reinforcement for rigidity and skid function
• Sold in pairs

Note

The hanger’s pin aligns with the leading edge; extending it beyond the frame can add about 1" of wheelbase. Confirm spring and bushing dimensions (2.75"/2.5" leafs, 3.0" ID clearance) and mock up shackle angle and driveline clearance before final install. Choose forward or rearward orientation based on skid needs and available clearance.
