90 Degree Short Link Tab

90 Degree Short Link Tab

Compact Mounting Tab for Tight Suspension and Frame Applications

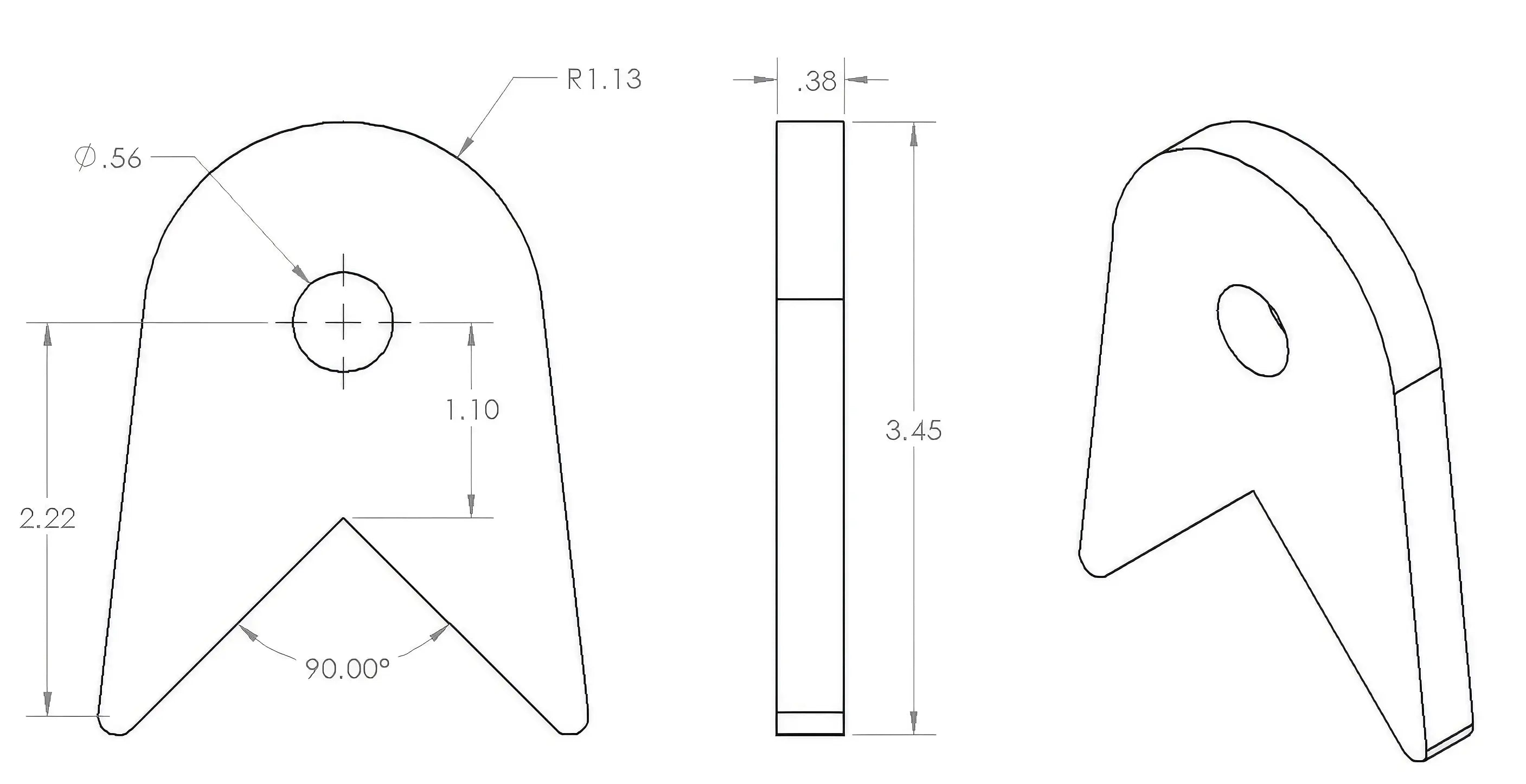

This short 90-degree link tab is ideal for mounting on the edge of a frame, truss, or square crossmember where space is limited. Made from 3/8" A36 steel and precision laser cut, it delivers strength and accuracy for link and suspension setups. It measures 1.25" from the base center to the bolt centerline and comes with a 9/16" bolt hole, which can be drilled to a different size if needed.

• Part Number: R1289
• Material: 3/8" thick A36 steel
• Length: 1.25" from base center to bolt centerline
• Bolt Hole: 9/16" (drillable to custom size)
• Precision laser cut for consistent fit
• Sold individually
